Metal hardness testing LM-100 pen style portable NDT HT leeb hardness tester

1 Set
MOQ
Metal hardness testing LM-100 pen style portable NDT HT leeb hardness tester
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Type: Customized
Place of Origin: Liaoning, China
Marca: XINLI
Model Number: LM-100
Product Name: Vickers Hardness Tester
Usage: Metal Hardness Testing
Measurement direction: 360 Degree
Hardness scales: H ,HB , B(HRB), C(HRC) , A(HRA) , HV , HS
Measurement range: HLD ( 200~960 )
Display: Display LCD,
storage Memory: 100 groups(each group include 1-7 testing result and 1 MEAN value)
Dimension: 153mm*76mm*37mm
weight: 280g
communication: USB
Informação básica
Place of Origin: Liaoning, China
Marca: XINLI
Model Number: LM-100
Condições de Pagamento e Envio
Packaging Details: 1.outside package is in line with export requrement carton case 2.inner package is instrument case
Supply Ability: 100 Set/Sets per Month
Descrição de produto

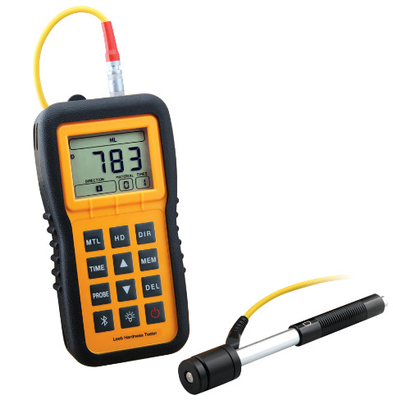

LM-100 portable rebound Lee hardness tester meter

overview

LM-100 provides not only accurate, reliable and repeatable hardness test readings, but also compact, comfortable and durable
structure with rubber case for the best protection of the unit. Furthermore, by its most-recent high-tech related features like
Bluetooth interface, 800 data storage capacity, large and sharp high contract LCD display, as well as easy and resourceful menu
operation, LM-100 offers its user the most effective and enjoyable Leeb Hardness Tester

Features

* Measure the hardness scale HB,HRC,HRB,HV,HS and HL, and strength σb.
* Optional D/C/G/DL/DC type impact devices to adapt to different application,
* stores 100 groups of hardness values.
* Standard configurations include D type probe, D type hardness calibration block,DataView communication software,USB cable and rubber sheath
specification
standard configuration

Working principle

The impact body impacts into the work piece and rebounds back. The rebound and impact velocities are measured at the 1mm point from the work piece in the following way: the integrated permanent magnet will produce directly proportional voltage with the impact
Optional device
