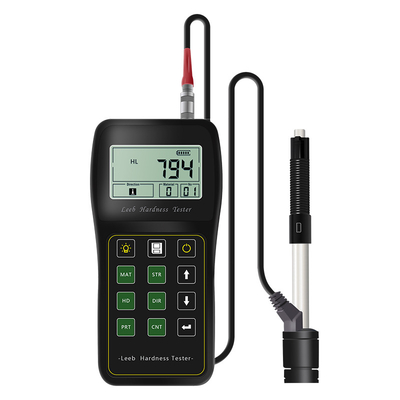

Product Overview
This instrument is a split type measuring instrument, which can measure the hardness of common metal materials quickly, without damage and with high accuracy. It can be used in both laboratory and project site. Through the instrument measurement condition setting, it can meet the needs of a variety of measurements. It is widely used in mold, heat treatment, machining, pressure vessel, auto parts, aerospace and other industries, as well as universities, scientific research institutes, technical supervision and special inspection institutes. It is a necessary instrument for material nondestructive hardness testing.
Product Features
1.High-contrast segment code LCD display, simple and convenient operation
2.It supports a variety of impact devices. The instrument automatically identifies the impact device and can be measured at the beginning
3.It can store up to 100 groups of hardness measurement data (impact times32 ~ 1). Each group of data includes single measurement value, average value, impact direction, times, materials, hardness system, test time and other information.
4.Equipped with microcomputer software (optional configuration), it has rich functions such as transmission of measurement results, storage and management of measurement values, statistical analysis of measurement values, printing of measurement reports, and batch setting of instrument parameters to meet higher requirements for quality assurance and management.
5.The power supply adopts 2 AA ordinary dry batteries, which can work continuouslyfor not less than 100h; it has power saving functions such as automatic sleep and automatic shutdown.
Product technical parameters
|
Measurement range |
170~960HLD
|
Hardness system |
HL,HV,HRA,HRC,HRB,HB,HS |
||
|
Error |
The indication error is less than ±6HLD (when HLD=760±30); the repeatability error is less than 6HLD (when HLD=760±30) |
||||
|
Measurement direction |
Support 360 degrees (vertical down, oblique down, horizontal, oblique up, vertical up) |
||||
|
Screen display |
Segment code screen display with backlight and adjustable contrast |
Data storage |
100 groups |
||
|
Test material |
Steel and cast steel, alloy tool steel, grey cast iron, ductile iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper |
||||
|
Power Supply |
2*1.5V AA dry battery
|
Size |
150mm*71mm*33mm |
||
Standard configuration
|
Name |
Quantity |
|
Host |
1 |
|
D-type impact device |
1 |
|
Standard Leeb hardness block |
1 |
|
Nylon brush A |
1 |
|
Small support ring |
1 |
|
AA dry battery |
2 |
|
Manual |
1 |
|
ABS instrument box |
1 |
|
Name |
Quantity |
|
Nylon brush B |
1 |
|
Special-shaped impact device and support ring |
1 |
|
Data transmission and analysis software CD |
1 |
|
Communication cables |
1 |
|
Micro printer |
1 |
|
Print cable |
1 |
1. Delivery Packaging
Packing in special wooden cases for export
2.Shipping & Delivery
It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
1. Customer inquiries will be answered within 24 hours. The general problem will be solved in 8 hours. Our sales and technical staff will provide pre-sale and after-sale services to customers at the first time.
2. Some of our products can support remote control, we can also remote control to help customers solve software problems and software upgrade.
3. Establish a cooperative batch order with us. If necessary, we can arrange for technicians to come to the customer company for training in operation and common troubleshooting.
1. Q: How is your price compared with other suppliers?
A:We are a manufacturer with high cost performance.
2. Q:How is your delivery time?
A:Desktop machines 1 set can be shipped within 7 days and 50 sets within 30 days. More than 50 sets need to be consulted with the company.
3. Q:What are the advantages of your products over other manufacturers?
A:Our products are superior to national standards.
4. Q:What solutions can your manufacturer provide to customers?
A:We can tailor-made, on-site solutions for our customers
5. Q:What kind of certificate you have?
A:We have ISO, CE certification , etc.
6. Q:Where have you exported your equipment?
A:We've already exported to more than 40 countries in Asia, Europe, Middle East, Africa, South America .etc.
7. Q:How about your after-sale service?
A:We will reply you within 24 hours by email or phone.
If we have local agent, we will arrange him to your site within 24 hours to assist you to shoot the problem.
